«SUB» is the innovative modular element in recycled plastic, used for the realization of bidirectional lightened floors. It replaces the lightening in bricks and polystyrene.
The formworks are availables singles or doubles, the four versions are all modulars to satisfy the different needs of heights. All the elements include feet and adjustable spacers.

news

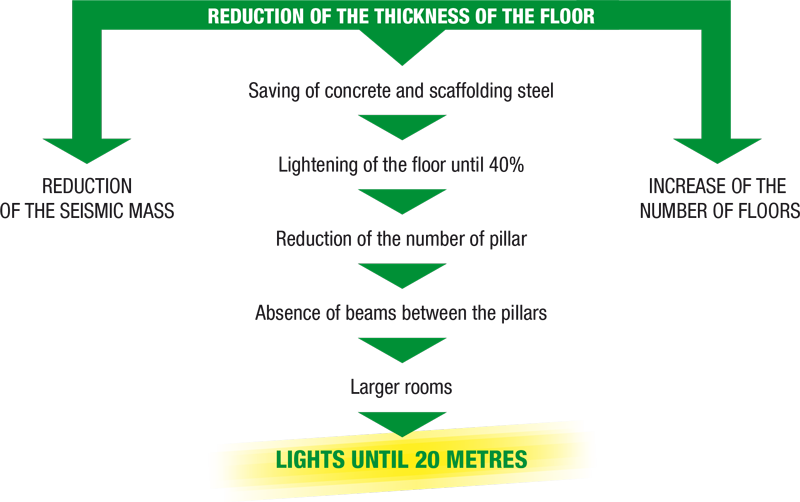

Advantages
vantaggi-ING

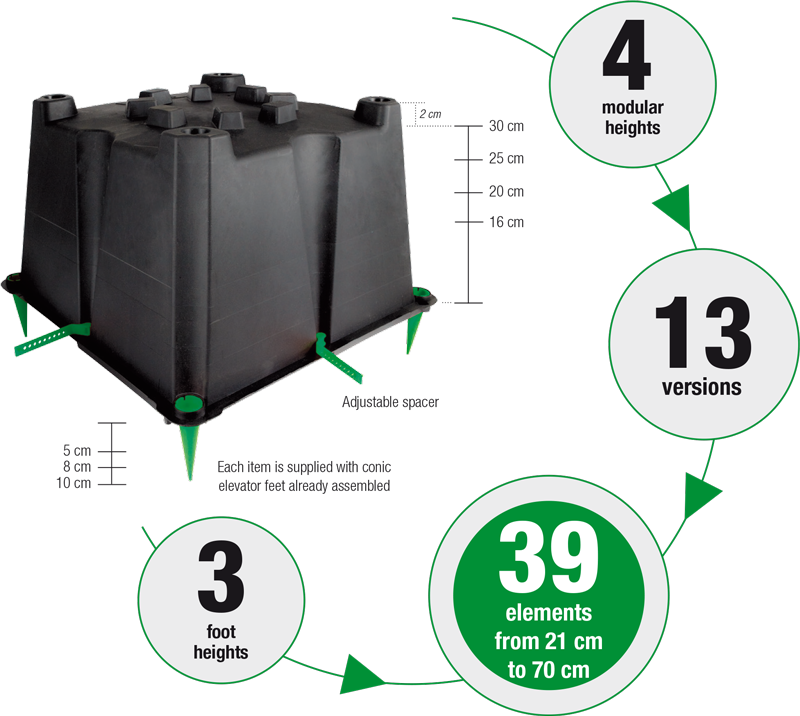

Useful Dimensions
versioni-ING

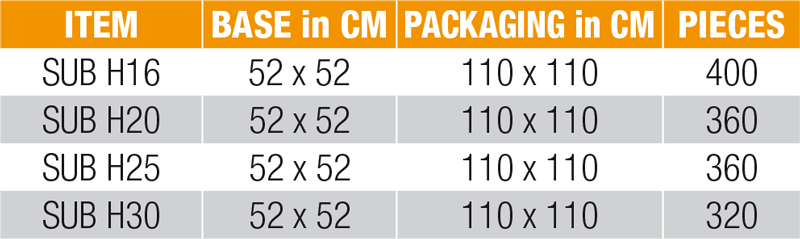

Specification
dimensioni-ING
Description of works

Execution of the floor with reinforced concrete, lightened by element like SUB with bidirectional capacity, to cast on site on a suitable substain horizontal framework. The total floor thickness is cm _____ lightened according to the project with element in recycled plastic like SUB, dimension cm 52 x 52 and height of cm ______ , with the elevator conic foot of cm ____ turned down. Supply of steel scaffolding with bidirectional mesh of suitable diameter and step to the proyect solicitations. It’s included the supply and the installation of the elements SUB provided with relative spacer, for the realization of orthogonal beams between the lightenings according to the predetermined thickness and ensuring the perfect geometry and leak during the concrete casting phase.

CONCRETE CONSUMPTION

Beam cm 10
beam10-ING
Beam cm 12
beam12-ING
Beam cm 14
beam14-ING
Beam cm 16
beam16-ING
